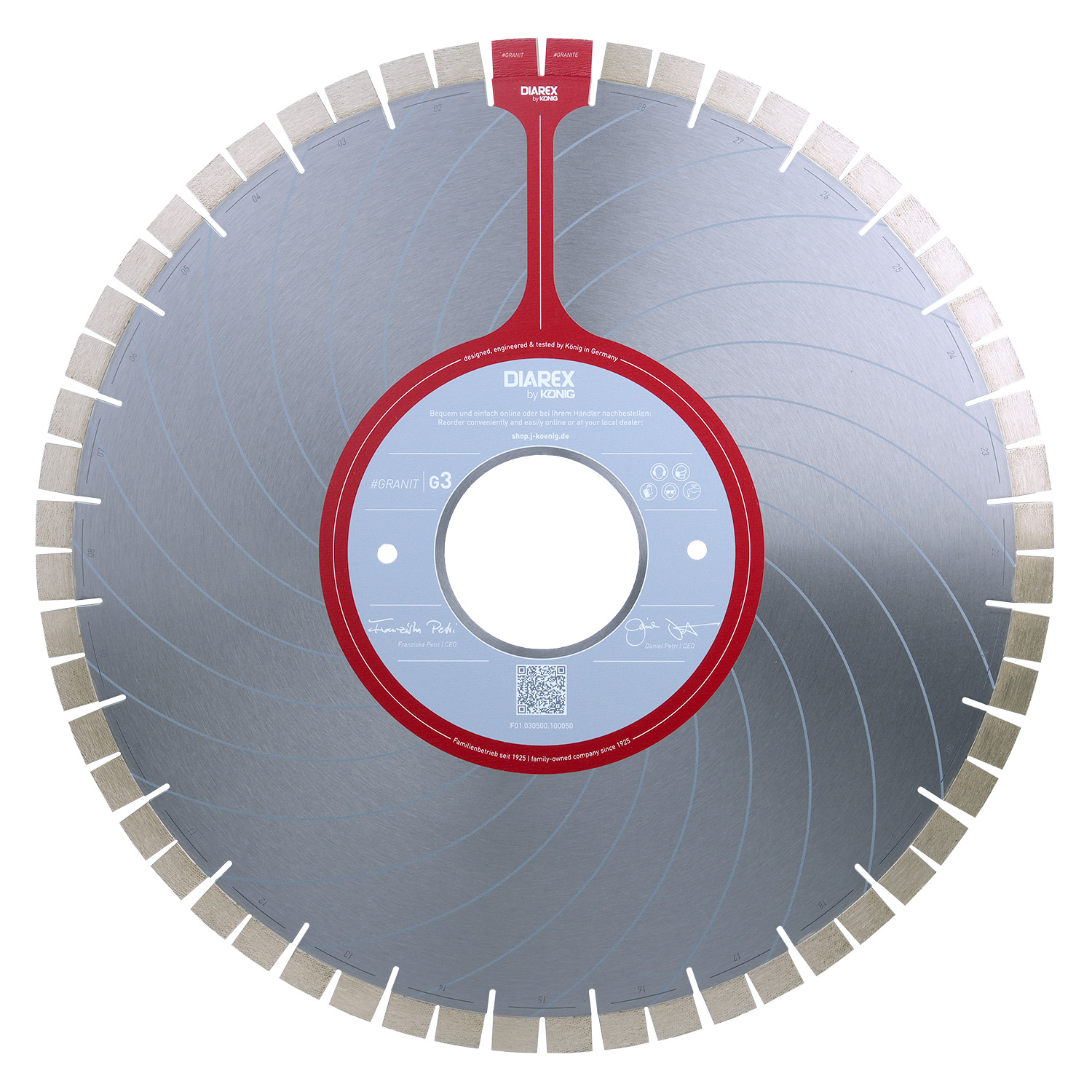

DIAREX blade G3 ø 500 mm | borehole 100 mm
Product information "DIAREX blade G3 ø 500 mm | borehole 100 mm"
DIAREX blade G3 – highest performance in granite
- diamond segments with set diamonds ensure consistent cutting quality and performance
- diamond layers perfectly arranged in the segment guarantee that the diamonds are evenly exposed on all sides of the segment
- please pay attention to the speed and feed recommendations. Specifications are to be adapted to the material thickness
| Material: | Granite, Quarzkomposit |
|---|---|
| Diameter: | 500 mm |
| Serie: | G-Serie |
| Borehole: | 100 mm |
| Segments: | 56 |
| Segment height: | 20 mm |
| Cutting width: | 3,6 mm |
| Core: | Silent core |
| Side holes: | 1 NL Donatoni, 2 NL GMM |
| RPM recommendation: | 1.250 - 1.650 U/min |
| feed recommendation: | 1,8 - 4,2 m/min |
